1.Application
Model 05 printing ink is our economical resin offset printing ink, which are
particularly suitable for printing packaging,advertisement,label,brochures and
decorating products on art paper, coated paper, offset paper, cardboard, etc,
especially suitable for single-color and multi-color printing.
2.Features
.Printing speed: 8000rph-10000rph
.Environment protecting
·Good water/ink balance.
·Rich in printing layer
·Clear and complete in printing dots.
.Quick-drying performance, quick setting, quick turn.
3. Properties
| ITEM/TYPE | TACK VALUE | FLUIDITY (mm） | PARTICLE STZE (um) | SETTING (min） | PAPER DRYING TIME(hr) | SKINNIN G TIME(hr) |
| YELLOW | 6-7 | 35±1 | 15 | 4 | <10 | >15 |
| MAGENTA | 5.5-6.5 | 34±1 | 15 | 4 | <10 | >15 |
| CYAN | 6.5-7.5 | 35±1 | 15 | 4 | <10 | >15 |
| BLACK | 7-8 | 35±1 | 15 | 4 | <10 | >15 |
①Tack value:The value measured by ink-0-meter under 32°C and 400prm in one min.
② Set time:Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc
③ Condition of test:Room temperature 25°C, humidity 65%-75%
4. Resistance
| ITEM/TYPE | LIGHT | HEAT | ACID | ALKALINE | ALCOHOL | SOAP |
| YELLOW | 4 | 5 | 5 | 4 | 4 | 4 |
| MAGENTA | 3 | 5 | 5 | 5 | 4 | 5 |
| CYAN | 7 | 5 | 5 | 5 | 5 | 5 |
| BLACK | 7 | 5 | 5 | 5 | 5 | 5 |

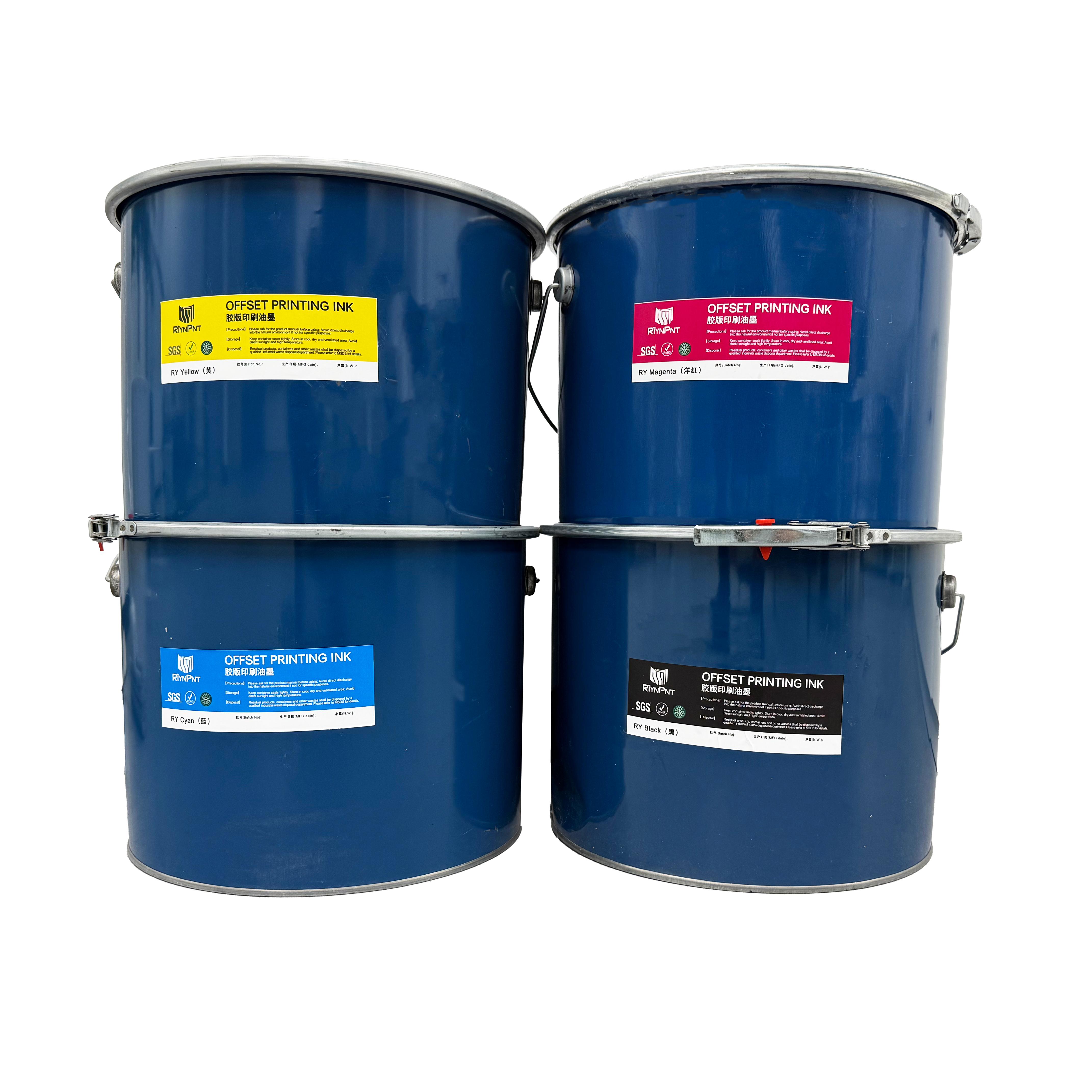

5. Packing: 2.5kgs/tin, 6tins/carton
6.Shelf Life : 3 years (from the production date); Storage against light and water
Note: The above data is subject to our test and only for reference.
